12V Solutions

Ultra compact and flexible solution for 12V nominal systems

The traditional 12V architecture that has been widely implemented and accepted uses single output, low frequency switching converters. As systems evolve and continuously incorporate more features, requiring additional discrete power rails to be added, the traditional model grows dramatically in area and bill of materials. As little as 25% of system power (measured in watts) can occupy more than 60% of the PCB area and components, severely limiting the ability of the system to scale with growing demands.

The Empower scalable 12V solution addresses this growing need without the added burden of PCB area, bill of material and cost. For the same requirements, the Empower scalable 12V solution is capable of a 3x reduction in area and a 6x reduction in component count. The combination of the EP60XX 12V input high efficiency converters with the ultra high-density EP70XX completely integrated IVRs makes the Empower 12V solution simple to implement and scale with minimal engineering effort.

Benefits of the Empower 12V Scalable Solution

12V -> 0.5-1.8V, 0.5-10A

7 rails

Empower's Scalable 12V Solution for up to 30W

Option
Output Power
1.8V Output
Variable Outputs
1
Up to 20W
EP6070
1-3x EP70xx
2
Up to 30W
EP6069
1-3x EP70xx

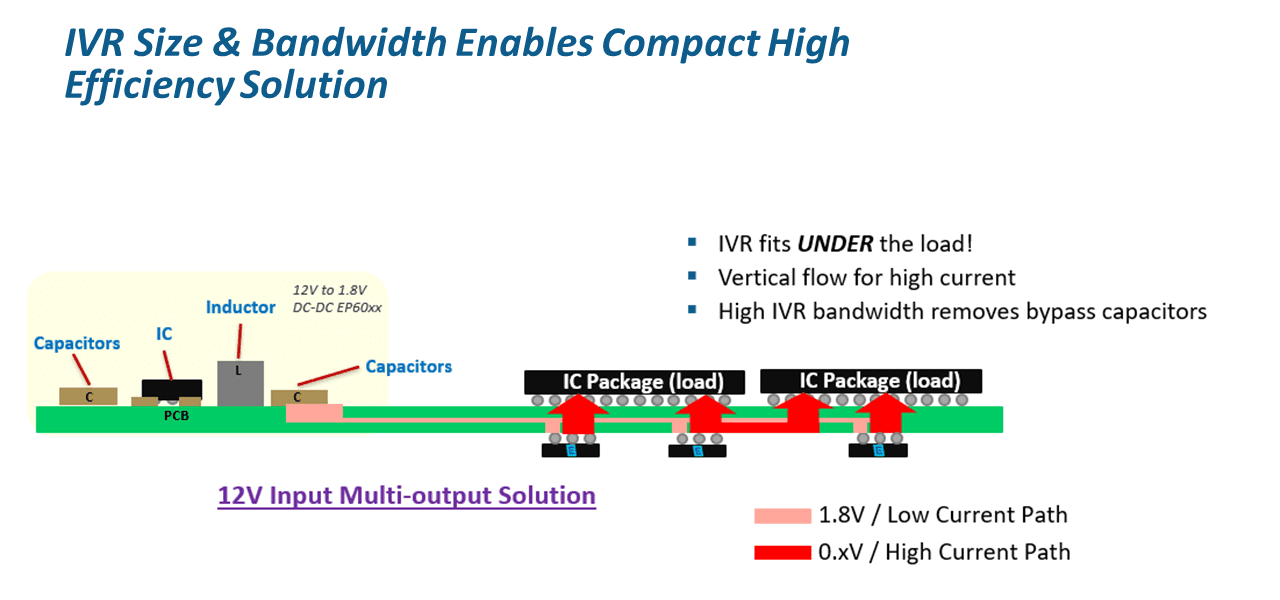

Traditional solution vs IVR

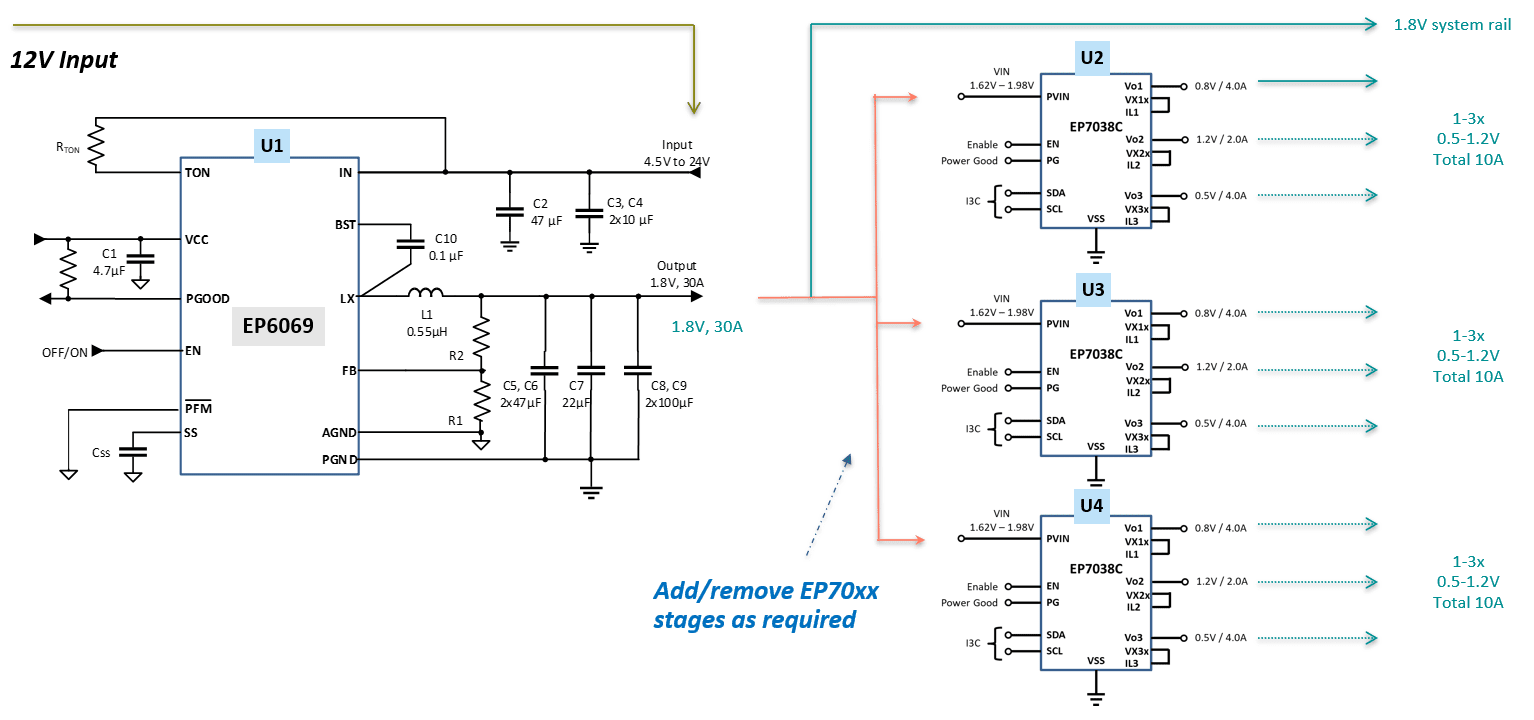

Application Circuit for Empower's Scalable 12V Solution

20 Component BOM can deliver 10 rails from 12V (up to 30W output)

#
Part Description
Part Type
Part # / Value
Qty
U1
12V to 1.8V Fixed Output Converter IC
IC
EP6069
1
C2
12V input de-coupling capacitor
Capacitor
47uF, 1210, 25V
1
C3
12V input de-coupling capacitor
Capacitor
10uF, 0603, 25V
1
C4
12V input de-coupling capacitor
Capacitor
10uF, 1210, 16V
1
C1
VCC input de-coupling capacitor
Capacitor
4.7uF, 0603, 6.3V
1
C7
1.8V Fixed output capacitor
Capacitor
22uF, 0805, 6.3V
1
C5, C6
1.8V Fixed output capacitor
Capacitor
47uF, 0805, 6.3V
2
C8, C9
1.8V Fixed output capacitor
Capacitor
100uF, 0805, 6.3V
2
L1
12V to 1.8V converter's inductor
Inductor
0.55uH, XAL7070-551MEC
1
C10
BST pin de-coupling capacitor
Capacitor
0.1uF, 16V, 0603
1
Css
SS pin de-coupling capacitor
Capacitor
10nF, 50V, 0402
1
R1, R2, R3, RTON
Resistors
Resistor
Misc
4
U2
Triple Output PoL IVR (0.5-1.2V/10A)
IC
EP70xx
1
U3
Triple Output PoL IVR (0.5-1.2V/10A)
IC
EP70xx
1
U4
Triple Output PoL IVR (0.5-1.2V/10A)
IC
EP70xx
1

12V Solution Reference Design

Part #
Description
Input Voltage
Iout (A)
Vout Min (V)
Vout Max (V)
Package
Size
Thickness
EP6069
Single Output 1.8V / 30A DC-DC
4.5V – 24V
30
0.6
0.85 x VIN
QFN
5.0 x 5.0
0.9
EP6070
Single Output 1.8V / 15A DC-DC
6.5V – 28V
15
0.6
0.85 x VIN
QFN
4.0 x 4.0
0.9

12V Solution Design Resources
