EP7013C
Single Output 3A IVR
Introducing the World’s Smallest & Fastest Voltage Regulator

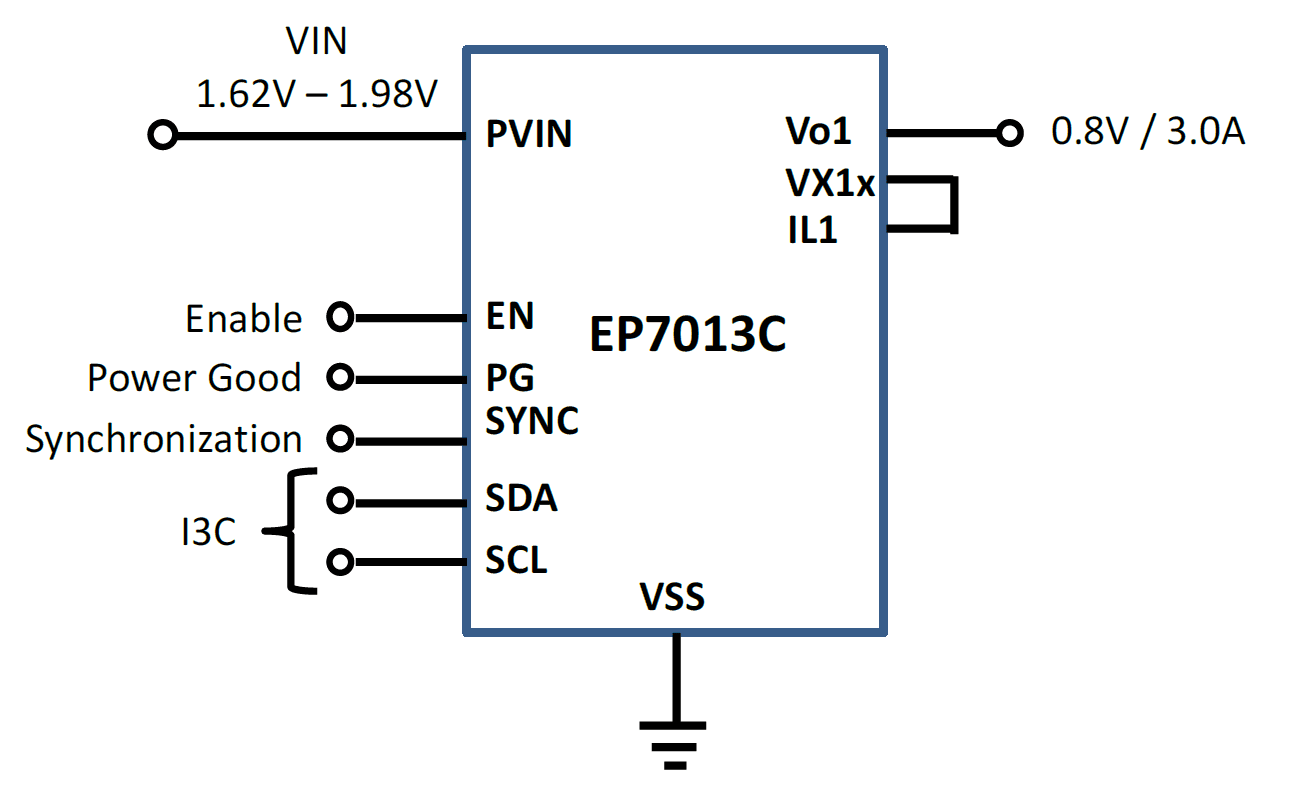

The EP7013 is a high-performance highly Integrated Voltage Regulator (IVR) with a single output capable of 3A that enables the full integration of all external components in one IC. Operating from a 1.8V input supply, the EP7013 enables performance 2-stage conversion with best density, efficiency, transient performance, ripple and dynamic voltage scaling (DVS).
Output Info
The 3A output demonstrates a flat efficiency curve with ultra-wide bandwidth.
Programmability
The EP7013 offers extensive programmability through its 28MHz I3C port, requiring no external discrete components. Highly accurate telemetry, diagnostics and protection are included.


Features
- Single step-down IVR: 3A
- Programmable Vout: 0.4V to 1.3V
- Set point accuracy: ± 1.0% over PVT
- Ultra-fast transient response
- Ultra-Fast DVS: 12 mV/ns
- Very accurate and fast telemetry
- Programmable start-up & sequence
- 28MHz I3C
- Temperature range: -40˚C to 125˚C

Benefits
- No discrete inductors or caps required
- Industry’s smallest solution from 2.5V – 16V Vin as a 2-stage converter
- Thin profile (750um)
- Low output voltage ripple
- Very high efficiency
- Reduced SoC voltage guard-band

Applications
- Server & Storage
- Vision & Graphics Processors
- Networking & Communication
- Optical transceiver
- Performance Consumer SoCs
- Memory controller ASICs
- LDO replacements
Package: 4.15mm x 4.15mm 44L FcCSP
