EP7015C

Single Output 5A Packaged IVR

Introducing the World’s Smallest & Fastest Voltage Regulator

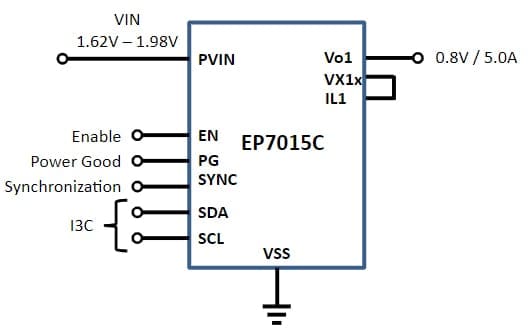

The EP7015 is a high-performance highly Integrated Voltage Regulator (IVR) with a single output capable of 5A that enables the full integration of all external components in one IC.  Operating from a 1.8V input supply, the EP7015 enables performance 2-stage conversion with best density, efficiency, transient performance, ripple and dynamic voltage scaling (DVS).

Output Info

The 5A output demonstrates a flat efficiency curve with ultra-wide bandwidth.

Programmability

The EP7015 offers extensive programmability through its 28MHz I3C port, requiring no external discrete components.  Highly accurate telemetry, diagnostics and protection are included.

Features

  • Single step-down IVRs: 5A
  • Programmable Vout:  0.4V to 1.3V
  • Set point accuracy: ± 1.0% over PVT
  • Ultra-fast transient response
  • Ultra-Fast DVS:  12 mV/ns
  • Very accurate and fast telemetry
  • Programmable start-up & sequence
  • 28MHz I3C
  • Temperature range: -40˚C to 125˚C

Benefits

  • No discrete inductors or caps required
  • Industry’s smallest solution from 2.5V – 16V Vin as a 2-stage converter
  • Thin profile (750um)
  • Low output voltage ripple
  • Very high efficiency
  • Reduced SoC voltage guard-band

Applications

  • Server & Storage
  • Vision & Graphics Processors
  • Networking & Communication
  • Optical transceiver
  • Performance Consumer SoCs
  • Memory controller ASICs
  • LDO replacements

Package: 5mm x 5mm 75L FcCSP
