Dual Output 10A Packaged IVR

Introducing the World’s Smallest & Fastest Voltage Regulator

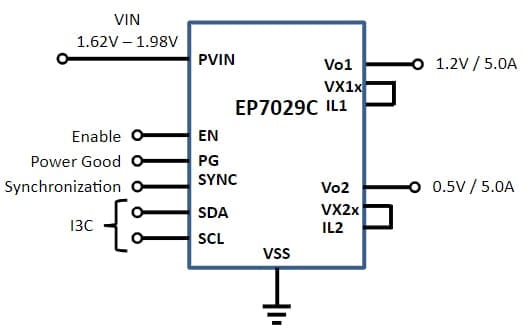

The EP7029 is a high-performance highly Integrated Voltage Regulator (IVR) with two outputs totalling 10A that enables the full integration of multiple voltage rails all in one IC, eliminating all external components.  Operating from a 1.8V input supply, the EP7029 enables performance 2-stage conversion with best density, efficiency, transient performance, ripple and dynamic voltage scaling (DVS).

Output Info

The two outputs are capable of 5A and 5A respectively with flat efficiency curves and ultra-wide bandwidth.


The EP7029 offers extensive programmability through its 28MHz I3C port, requiring no external discrete components.  Highly accurate telemetry, diagnostics and protection are included.


  • Two step-down IVRs: 5A, 5A
  • Programmable Vout:  0.5V to 1.2V
  • Set point accuracy: ± 1.0% over PVT
  • Ultra-fast transient response
  • Ultra-Fast DVS:  12 mV/ns
  • Very accurate and fast telemetry
  • Programmable start-up & sequence
  • 28MHz I3C
  • Temperature range: -40˚C to 125˚C


  • No discrete inductors or caps required
  • Thin profile (750um)
  • Low output voltage ripple
  • Very high efficiency
  • Reduced SoC voltage guard-band


  • Server & Storage
  • Vision & Graphics Processors
  • Networking & Communication
  • Optical transceiver
  • Performance Consumer SoCs
  • Memory controller ASICs
  • LDO replacements

Package: 5mm x 5mm 75L FcCSP
