EP7032C

Triple Output 6A Packaged IVR

Introducing the World’s Smallest & Fastest Voltage Regulator

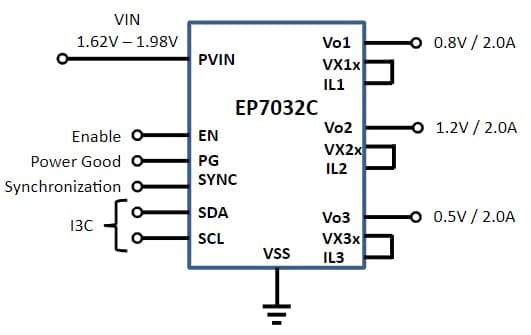

The EP7032 is a high-performance highly Integrated Voltage Regulator (IVR) with three outputs totalling 6A that enables the full integration of multiple voltage rails all in one IC, eliminating all external components.  Operating from a 1.8V input supply, the EP7032 enables performance 2-stage conversion with best density, efficiency, transient performance, ripple and dynamic voltage scaling (DVS).

Output Info

The three outputs are capable of 2A, 2A and 2A respectively with flat efficiency curves and ultra-wide bandwidth.

Programmability

The EP7032 offers extensive programmability through its 28MHz I3C port, requiring no external discrete components.  Highly accurate telemetry, diagnostics and protection are included.

Features

  • Three step-down IVRs: 2A, 2A, 2A
  • Programmable Vout:  0.4V to 1.3V
  • Set point accuracy: ± 1.0% over PVT
  • Ultra-fast transient response
  • Ultra-Fast DVS:  12 mV/ns
  • Very accurate and fast telemetry
  • Programmable start-up & sequence
  • 28MHz I3C
  • Temperature range: -40˚C to 125˚C

Benefits

  • No discrete inductors or caps required
  • Industry’s smallest solution from 2.5V – 16V Vin as a 2-stage converter
  • Thin profile (750um)
  • Low output voltage ripple
  • Very high efficiency
  • Reduced SoC voltage guard-band

Applications

  • Server & Storage
  • Vision & Graphics Processors
  • Networking & Communication
  • Optical transceiver
  • Performance Consumer SoCs
  • Memory controller ASICs
  • LDO replacements

Package: 5mm x 5mm 75L FcCSP
