ECAP IVR

High-speed designs use digital components with very fast edge rates in their output signals which can be subjected to significant distortion and degradation creating high bit-error-rates and lower data throughput.  Insertion and reflection losses, crosstalk and impedance mismatch, are all factors, amongst others, influencing the integrity of a transmitted signal.

Empower’s E-CAP silicon capacitors provide wide bandwidth low impedance highly stable decoupling capacitors capable of being placed close and even integrated into an SoC substrate.

Empower Semiconductor is developing power management solutions enabling full unrestricted speed and performance of the latest xPUs.

  • High power density
  • High bandwidth conversion
  • Low power distribution losses
  • Vertical Power

The ability to process data and perform complex calculations at high speeds has been intensified in recent years by leaps in technologies such as artificial intelligence, 3-D imaging and autonomous driving. These technologies have exacerbated the need for faster and more complex processors and architectures.

Equipment designed to operate within a high magnetic field environment can experience power failures or abnormal operating conditions due to the force the magnetic field imposes on ferromagnetic material-based electronics.

Moreover, magnetic resonance imaging (MRI) devices can record false or distorted images due to the inferences from such electronics. Empower’s IVRs regulators use non-ferromagnetic air-core inductors ideal for operating in harsh magnetic environments.

Data being communicated and processed around the globe is rapidly growing, driving the need for a new generation of faster data processing components and elements in data centers and datacom equipment.

Empower Semiconductor offers novel fully integrated power management solutions that both increase performance and solve the power density challenge of space-constrained data-intensive applications.

Click for more

System-on-Modules (SOMs) and Computer-on-Modules (CoMs) provide all components of an embedded processing system (processors, communication interfaces, memory blocks, power management, etc.) on a single production-ready printed circuit board (PCB). This modular approach makes them ideal for embedding into a variety of end systems and applications.Empower’s IVRs provide high-density configurable multi-rails regulators enabling rapid and flexible prototyping.

Chiplet architectures are rapidly gaining popularity over monolithic designs in developing complex SoCs. While providing increased performance, design flexibility and upgradability, they do, however, require more complex power management and PCB routing.

Empower’s IVRs can be integrated as an additional chiplet into an SoC increasing the power delivery efficiency and simplifying PCB routing.

EP70xx Triple Output IVR

Overview of the EP70XX IVR

The EP70XX is the industry’s first commercially available high-density IVR, integrating three rails in a miniature IC offering a complete solution with zero discrete components.

The EP70XX series of single, dual and triple-output step-down converters provide the ultimate flexibility required for high-density systems that demand the best performance in the smallest size. With its miniature 5 mm x 5 mm package and 0.75mm height, the EP70XX IVR is ideally suited for point-of-load power conversion.

The EP70XX IVR features unmatched transient response and DVS capability (Dynamic Voltage Scaling) making it the optimal solution for powering high-performance systems with the highest density.

The EP70XX IVR solution is also available in die form to achieve the highest form of integration, directly into ASIC/SoC packages. Contact Empower for this solution.

Overview of the EP70XX IVR

Electrical Parameters
Extensive Features
VIN (Min) (V)
1.62
VIN (Max) (V)
1.98
VOUT (Min) (V)
0.4
VOUT (Max) (V)
1.2
Operating temperature range (C)
-40 to +125
# of Outputs
1-3
Digital Interface
I2C
Package | Size
FcCSP | 5.0 x 5.0 mm
  • Up to three Step-down integrated Voltage Regulators (IVR) with total Vin = 1.8V ± 10%

  • Zero discrete inductors or capacitors required

  • Output voltage set point accuracy: ± 1.0% over PVT

  • Ultra-fast transient response: < 15mV dip on full load/500ns step

  • Programmable Fast Dynamic Voltage Scaling:  ± 6 mV/ns

  • Extensive fault protection: OVLO, UVLO, OVP, PG, current limiting, short-circuit protection

  • Telemetry: accurate voltage (± 1.5%) and temperature (± 4C) reporting

  • Adjustable, fast soft-start with low in-rush current

  • Integrated power sequencing and pre-bias protection

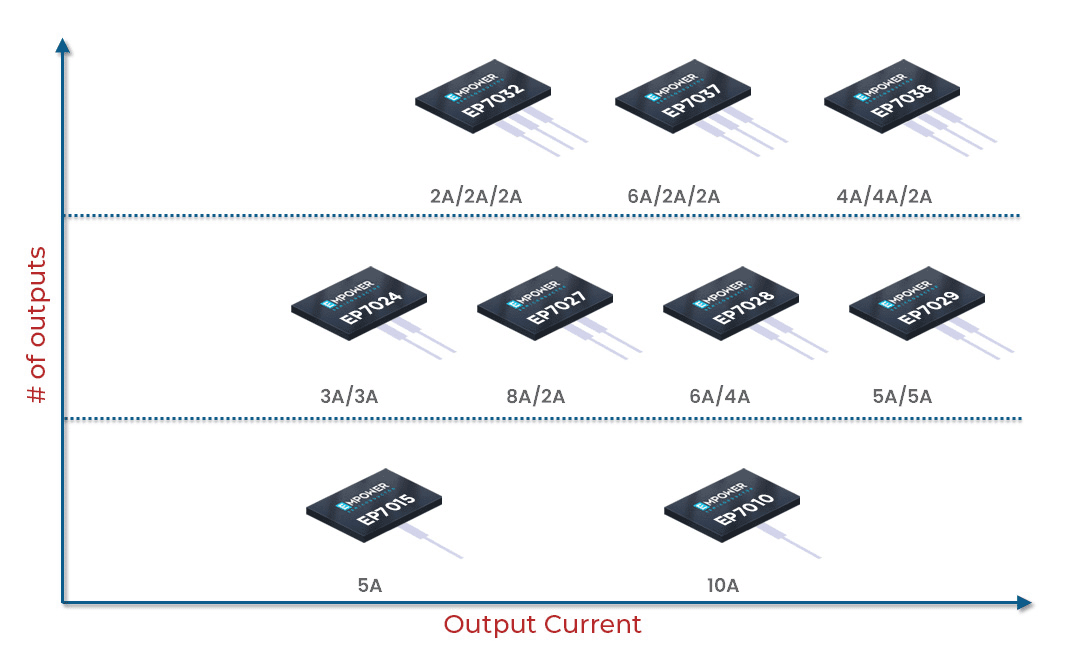

Empower IVR™ EP70XX Product Family Fully integrated power supply on a chip - no discrete components

Part NumberDescriptionInput VoltageVR Regulated OutputsVR1 lout [A]VR2 lout [A]VR3 lout [A]VR4 lout [A]Vout Min [V]Vout Max [V]Package TypePackage Size (L x W) [mm]Package Thickness [mm]Product BriefBuy/Inquire
EP7010CSingle Output 10A IVR1.8V110------0.501.20FcCSP5 x 50.75
EP7015CSingle Output 5A IVR1.8V15------0.501.20FcCSP5 x 50.75
EP7024CDual Output 6A IVR1.8V233---0.501.20FcCSP5 x 50.75
EP7027CDual Output 10A IVR1.8V2820.501.20FcCSP5 x 50.75
EP7028CDual Output 10A IVR1.8V2640.501.20FcCSP5 x 50.75
EP7029CDual Output 10A IVR1.8V255---0.501.20FcCSP5 x 50.75
EP7032CTriple Output 6A IVR1.8V32220.501.20FcCSP5 x 50.75
EP7037CTriple Output 10A IVR1.8V36220.501.20FcCSP5 x 50.75
EP7038CTriple Output 10A IVR1.8V34240.501.20FcCSP5 x 50.75

EP70XX Demo Board Downloads

The EP70XX Demo Platform comprises a single board that contains the EP70XX device with no external components for the operation of the IVR.

The demo platform is equipped to connect a PC via a micro-USB connector and a USB-to-I2C translation circuit, allowing IVR configuration through a Graphical User Interface (GUI). There are also headers and test points to connect input power, output loads and probe I/O signals.

Purchase the EP70XX demo board at Mouser

Title

EP70XXC Demo Board Manual

EP70XXC Demo Board GUI

Description

User Manual for the EP70XXC Demo board and GUI

Graphical User Interface to exercise the features and test the demo board

Download
