EP7037C

Triple Output 10A Packaged IVR

Introducing the World’s Smallest & Fastest Voltage Regulator

The EP7037 is a high-performance highly Integrated Voltage Regulator (IVR) with three outputs totalling 10A that enables the full integration of multiple voltage rails all in one IC, eliminating all external components.  Operating from a 1.8V input supply, the EP7037 enables performance 2-stage conversion with best density, efficiency, transient performance, ripple and dynamic voltage scaling (DVS).

Output Info

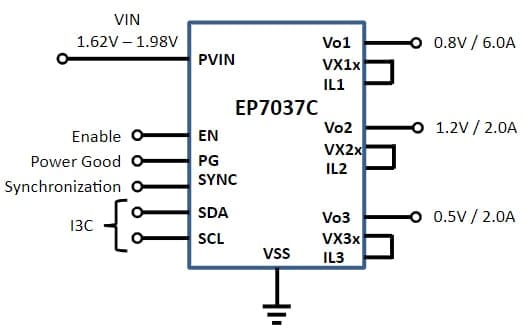

The three outputs are capable of 6A, 2A and 2A respectively with flat efficiency curves and ultra-wide bandwidth.

Programmability

The EP7037 offers extensive programmability through its 28MHz I3C port, requiring no external discrete components.  Highly accurate telemetry, diagnostics and protection are included.

Features

  • Three step-down IVRs: 6A, 2A, 2A
  • Programmable Vout:  0.4V to 1.3V
  • Set point accuracy: ± 1.0% over PVT
  • Ultra-fast transient response
  • Ultra-Fast DVS:  12 mV/ns
  • Very accurate and fast telemetry
  • Programmable start-up & sequence
  • 28MHz I3C
  • Temperature range: -40˚C to 125˚

Benefits

  • No discrete inductors or caps required
  • Industry’s smallest solution from 2.5V – 16V Vin as a 2-stage converter
  • Thin profile (750um)
  • Low output voltage ripple
  • Very high efficiency
  • Reduced SoC voltage guard-band

Applications

  • Server & Storage
  • Vision & Graphics Processors
  • Networking & Communication
  • Optical transceiver
  • Performance Consumer SoCs
  • Memory controller ASICs
  • LDO replacements

Package: 5mm x 5mm 75L FcCSP
